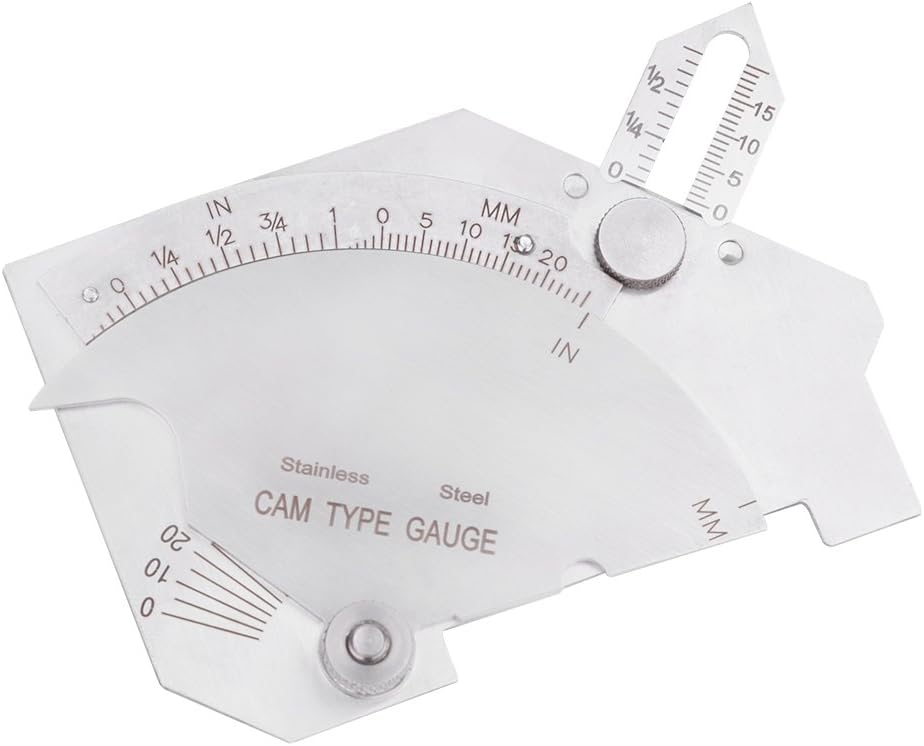

Bridge Cam Welding Gauge

The Bridge Cam Gauge is a highly versatile and precision-engineered tool designed for comprehensive inspection of welded joints and surfaces. Ideal for welders, inspectors, and quality control professionals, it combines multiple measurement functions into a single, easy-to-use instrument.

Manufactured from premium-grade stainless steel, the gauge offers exceptional durability, corrosion resistance, and long-lasting performance, even in demanding industrial environments. The surface markings are permanently laser-engraved to provide clear, accurate readings that resist wear and fading over time.

This multifunctional gauge enables accurate measurement of:

• Weld preparation angle (0° to 60°)
• Excess weld metal (cap height)
• Undercut depth
• Fillet weld throat thickness
• Fillet weld leg length
• Misalignment (high-low)
• Linear dimensions up to 50 mm (2 inches)

For added convenience, all measurements can be taken in either millimetres or inches, making the gauge suitable for a wide range of fabrication, inspection, and quality assurance applications.

Key Features:

• Multifunction gauge for weld inspection and measurement
• Precision laser-engraved scales for clear, lasting readability
• Robust stainless steel construction for maximum durability
• Measures in both metric and imperial units
• Compact, portable, and easy to use in the workshop or on-site
• Ideal for welding inspection, fabrication, and quality control applications
